深い溝のボール ベアリング
Created with Pixso. Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

ブランド名: GQZ /OEM
モデル番号: 6211ZZ
MOQ: 1個
価格: USD 0.50 to 1.00
納期: 3~5営業日
支払い条件: T/T、ウェスタンユニオン、マネーグラム
詳細情報
起源の場所:
中国
証明:
ISO9001:2015
幅(B):
21mm
応用:
産業用モーター、ファン、コンプレッサー、農業機械、コンベア
外径(D):
100mm
内径(d):
55mm
材料:
GCr15クロム軸受鋼
ベアリングモデル:
6211ZZ
特徴:
防塵スチールシールド、低ノイズ、グリスアップ済み、中高速
密封器の種類:
スチール両面シールドZZ
行数:
単一行
精度クラス:
P0 / P6
パッケージの詳細:
個々の荷箱
供給の能力:
1 か月あたり 100,000 セット
製品説明
Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Product Overview

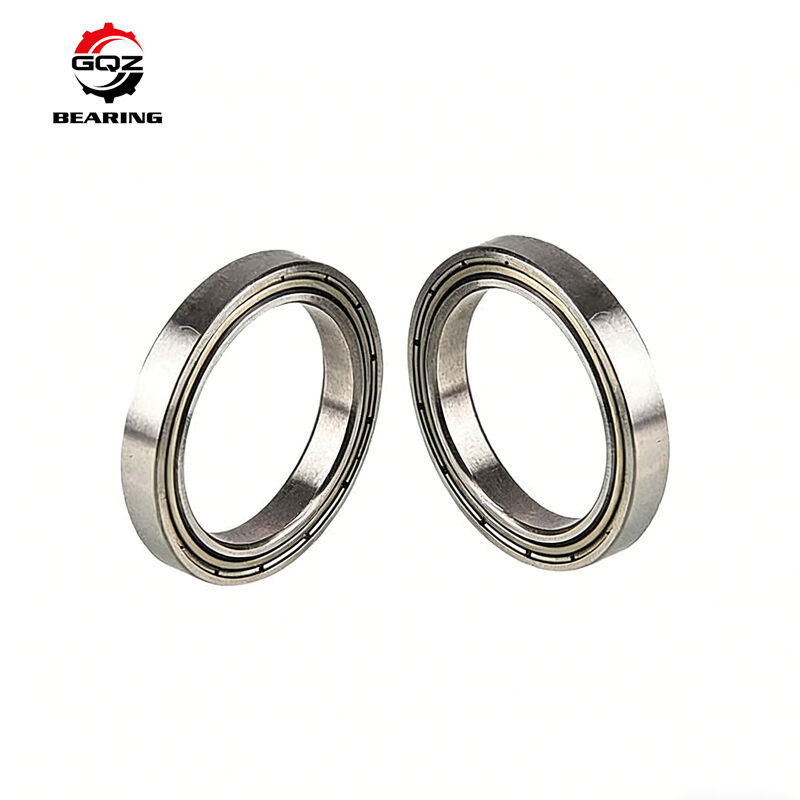

  • 6211ZZ is a single row deep groove ball bearing sized 55×100×21mm with double-sided stamped steel ZZ shields. The metal shield design blocks dust and debris, suitable for dry and clean working environments. It can withstand combined radial load and light bidirectional axial load. Pre-lubricated at factory for instant installation, this bearing runs smoothly at medium-high speed and is widely used in general industrial transmission equipment.

*Send us your inquiry now to get samples and the latest factory quotation for 6211ZZ bearings.

Key Specifications
Specification Value
Bearing Model 6211ZZ
Bore d 55 mm
Outer diameter D 100 mm
Width B 21 mm
Min chamfer r 1.5 mm
Dynamic load Cr 47.5 kN
Static load C0r 29.3 kN
Limiting speed (Grease) 7500 r/min
Limiting speed (Oil) 8600 r/min
Approximate weight 0.61 kg
Seal Type Double-sided steel shield ZZ
Clearance C0 standard, C3 optional
Precision P0 standard, P6 optional
Material GCr15 Chrome Bearing Steel
Main Features
  • Double-sided ZZ steel dust shields, effectively prevent dust contamination
  • Standard C0 normal clearance, C3 enlarged clearance optional for high-temperature conditions
  • Stamped steel cage with low friction, stable rotation and low vibration
  • Withstand radial load plus light bidirectional axial load
  • Pre-filled grease, no extra lubrication needed during initial assembly
  • P0 precision standard, P6 precision grade available on request

Typical Applications
  • General industrial motors and ventilation fans
  • Compressors and air pump equipment
  • Conveyor roller transmission machinery
  • Agricultural processing machinery
  • Light-duty gearboxes and small rotary devices

*Contact our engineering team today for professional bearing selection guidance and technical parameters.

Why Choose GQZ Bearing
  • High-purity GCr15 chrome bearing steel with strict heat treatment for long service life and wear resistance.
  • Precision ground raceways and balls ensure quiet, smooth running performance.
  • Multiple options including clearance grades and precision to match diverse working conditions.
  • Abundant spot stock for ZZ sealed deep groove bearings, support sample orders and fast bulk delivery.
  • OEM laser marking and customized packaging services for wholesale buyers.

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

Wholesale 6211ZZ Standard Sealed Ball Bearing 55x100x21mm Low Noise Single Row Industrial Bearing GQZ

FAQ

Q1: What are the dimensions of 6211ZZ?
A1: Bore 55 mm, Outer diameter 100 mm, Width 21 mm.

Q2: What does ZZ stand for?
A2: Double-sided steel dust shields to block dust and dirt.

Q3: Can it bear heavy axial load?
A3: Only suitable for light bidirectional axial load, mainly for radial loads.

Q4: Clearance options?
A4: C0 standard clearance, C3 enlarged clearance optional.

Q5: Is it pre-greased?
A5: Yes, factory pre-lubricated for easy installation.
