| MOQ: | 1.PCS |
| 価格: | $0.1 ~ $1.00 |
| 標準梱包: | Standard Carton Box / Wooden Pallet Case. |
| 配達期間: | Within 3 working days |
| 決済方法: | T/T, Western Union, Paypal, MoneyGram |
| 供給能力: | 100000.pcs / Month |
| Attribute | Value |
|---|---|
| Material | Stainless Steel, Gcr15, Carbon Steel |
| Structure | Combined Needle Roller Bearing |
| Size | 140×175×35mm |
| Precision | P0; P6; P5; P4 |
| Stock Quantity | 6200 pcs |

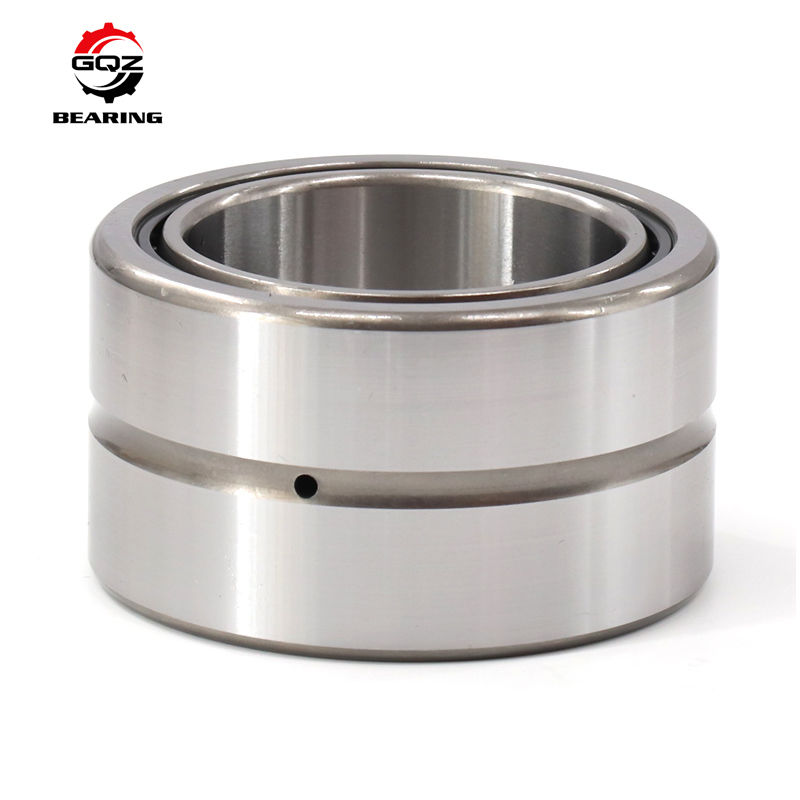

Needle roller bearing NA4828 are roller bearings with cylindrical rollers that are small in diameter. In spite of their low cross section, needle roller bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.
Needle roller bearing NA4828 only carry pure radial load and cannot limit the axial displacement of shaft relative to the housing. It is important to ensure that inner ring axis and outer ring axis must be aligned during mounting the bearings.
| Bearing Model | d (mm) | D (mm) | T (mm) | Weight (kg) |
|---|---|---|---|---|
| RNA6901 | 12 | 24 | 22 | 0.030 |
| RNA6902 | 15 | 28 | 23 | 0.038 |
| RNA6903 | 17 | 30 | 23 | 0.040 |
| RNA6904 | 20 | 37 | 30 | 0.096 |
| RNA6905 | 25 | 42 | 30 | 0.112 |
| RNA6906 | 35 | 47 | 30 | 0.126 |
| RNA6907 | 42 | 55 | 36 | 0.182 |
| RNA6908 | 48 | 62 | 40 | 0.247 |
| RNA6909 | 52 | 68 | 40 | 0.334 |
| RNA6910 | 58 | 72 | 40 | 0.291 |
| RNA6911 | 63 | 80 | 45 | 0.458 |
| RNA6912 | 68 | 85 | 45 | 0.490 |
| RNA6913 | 72 | 90 | 45 | 0.541 |
| RNA6914 | 80 | 100 | 54 | 0.827 |
| RNA6915 | 85 | 105 | 54 | 0.866 |
| RNA6916 | 90 | 110 | 54 | 0.916 |
| RNA6917 | 100 | 120 | 63 | 1.170 |
| RNA6918 | 105 | 125 | 63 | 1.21 |
| RNA6919 | 110 | 130 | 63 | 1.27 |
| RNA6920 | 100 | 140 | 71 | - |
