| MOQ: | 1 PCS |
| 価格: | $260 / pcs |
| 標準梱包: | in individual packing box |
| 配達期間: | 3-5 working days |
| 決済方法: | T/T, Western Union, MoneyGram |
| 供給能力: | 100000 Sets per month |

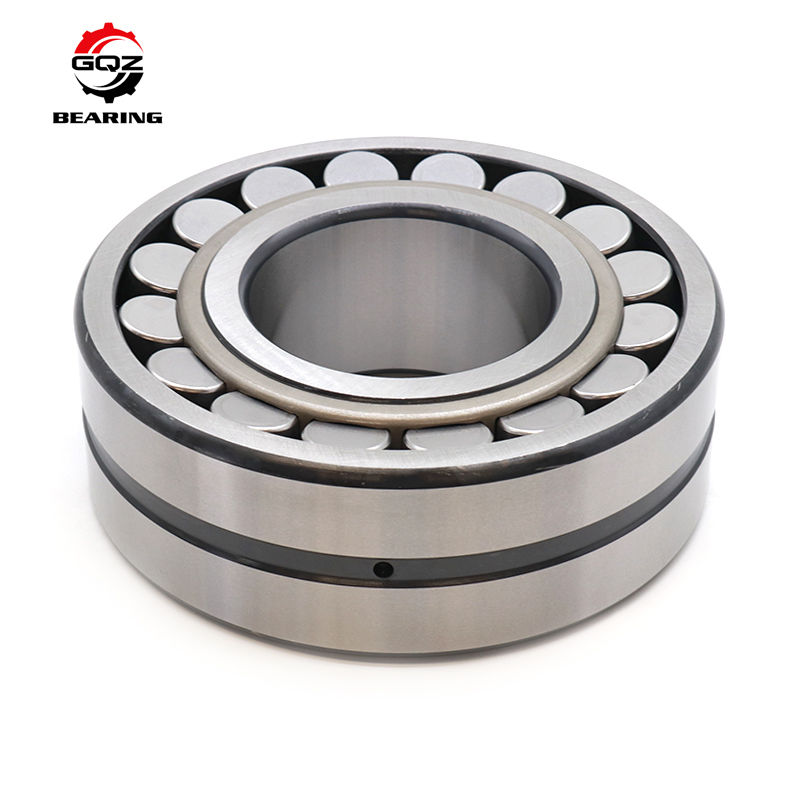

This type of bearing is equipped with spherical rollers between the spherical raceway outer ring and the double raceway inner ring. According to the different internal structures, CA, CC, MB,E Four types, since the arc center of the outer ring raceway is consistent with the bearing center, it has the self-aligning performance, so it can automatically adjust the shaft center misalignment caused by the deflection or misalignment of the shaft or the shell, and can withstand radial loads and Bidirectional axial load.
Main uses of spherical roller bearings: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox seats, rolling mill rollers, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical Self-aligning bearing with seat.
|
Bearing No.
|
Dimensions(mm)
|
Weight
|
||
|
|
d
|
D
|
T
|
kg
|
|
22208CA/C3W33
|
40
|
80
|
23
|
0.54
|
|
22209CA/C3W33
|
45
|
85
|
23
|
0.58
|
|
22210CA/C3W33
|
50
|
90
|
23
|
0.62
|
|
22211CA/C3W33
|
55
|
100
|
25
|
0.84
|
|
22212CA/C3W33
|
60
|
110
|
28
|
1.2
|
|
22213CA/C3W33
|
65
|
120
|
31
|
1.6
|
|
22214CA/C3W33
|
70
|
125
|
31
|
1.7
|
|
22215CA/C3W33
|
75
|
130
|
31
|
1.8
|
|
22216CA/C3W33
|
80
|
140
|
33
|
2.2
|
|
22217CA/C3W33
|
85
|
150
|
36
|
2.7
|
|
22218CA/C3W33
|
90
|
160
|
40
|
3.28
|
|
22219CA/C3W33
|
95
|
170
|
43
|
4.1
|
|
22220CA/C3W33
|
100
|
180
|
46
|
5
|
|
22222CA/C3W33
|
110
|
200
|
53
|
7.2
|
|
22224CA/C3W33
|
120
|
215
|
58
|
8.9
|
|
22226CA/C3W33
|
130
|
230
|
64
|
11.2
|
|
22228CA/C3W33
|
140
|
250
|
68
|
14.5
|
|
22230CA/C3W33
|
150
|
270
|
73
|
18.6
|
|
22308CA/C3W33
|
40
|
90
|
33
|
1
|
|
22309CA/C3W33
|
45
|
100
|
36
|
1.38
|
|
22310CA/C3W33
|
50
|
110
|
40
|
1.85
|
|
22311CA/C3W33
|
55
|
120
|
43
|
2.35
|
|
22312CA/C3W33
|
60
|
130
|
46
|
2.95
|
|
22313CA/C3W33
|
65
|
140
|
48
|
3.55
|
|
22314CA/C3W33
|
70
|
150
|
51
|
4.4
|
|
22315CA/C3W33
|
75
|
160
|
55
|
5.25
|
|
22316CA/C3W33
|
80
|
170
|
58
|
6.39
|
|
22317CA/C3W33
|
85
|
180
|
60
|
7.25
|
|
22318CA/C3W33
|
90
|
190
|
64
|
8.6
|
|
22319CA/C3W33
|
95
|
200
|
67
|
10.1
|
|
22320CA/C3W33
|
100
|
215
|
73
|
13.4
|
|
22322CA/C3W33
|
110
|
240
|
80
|
18
|
|
22324CA/C3W33
|
120
|
260
|
86
|
22
|
|
22326CA/C3W33
|
130
|
280
|
93
|
28.5
|
|
Bearing No.
|
Dimensions(mm)
|
Weight
|
||
|
|
d
|
D
|
T
|
KG
|
|
21306CA/C3W33
|
30
|
72
|
19
|
0.412
|
|
21307CA/C3W33
|
35
|
80
|
21
|
0.542
|
|
21308CA/C3W33
|
40
|
90
|
23
|
0.743
|
|
21309CA/C3W33
|
45
|
100
|
25
|
1
|
|
21310CA/C3W33
|
50
|
110
|
27
|
1.3
|
|
21311CA/C3W33
|
55
|
120
|
29
|
1.65
|
|
21312CA/C3W33
|
60
|
130
|
31
|
2.08
|
|
21313CA/C3W33
|
65
|
140
|
33
|
2.57
|
|
21314CA/C3W33
|
70
|
150
|
35
|
3.11
|
|
21315CA/C3W33
|
75
|
160
|
37
|
3.76
|
|
21316CA/C3W33
|
80
|
170
|
39
|
4.47
|
|
21322CA/C3W33
|
110
|
240
|
50
|
11.8
|
|
23024CA/C3W33
|
120
|
180
|
46
|
3.98
|
|
23026CA/C3W33
|
130
|
200
|
52
|
5.85
|
|
23028CA/C3W33
|
140
|
210
|
53
|
6.31
|
|
23030CA/C3W33
|
150
|
225
|
56
|
7.74
|
|
23032CA/C3W33
|
160
|
240
|
60
|
9.43
|
|
23034CA/C3W33
|
170
|
260
|
67
|
12.8
|
|
23036CA/C3W33
|
180
|
280
|
74
|
16.9
|
|
23038CA/C3W33
|
190
|
290
|
75
|
17.7
|
|
23040CA/C3W33
|
200
|
310
|
82
|
22.7
|
|
23044CA/C3W33
|
220
|
340
|
90
|
29.7
|
|
23048CA/C3W33
|
240
|
360
|
92
|
32.4
|
|
24024CA/C3W33
|
120
|
180
|
60
|
5.05
|
|
24026CA/C3W33
|
130
|
200
|
69
|
7.55
|
|
24028CA/C3W33
|
140
|
210
|
69
|
8.01
|
|
24030CA/C3W33
|
150
|
225
|
75
|
10.1
|
|
24032CA/C3W33
|
160
|
240
|
80
|
12.2
|
|
24034CA/C3W33
|
170
|
260
|
90
|
16.7
|
|
24036CA/C3W33
|
180
|
280
|
100
|
22.1
|
|
24038CA/C3W33
|
190
|
290
|
100
|
23
|
|
24040CA/C3W33
|
200
|
310
|
109
|
29.3
|
|
24044CA/C3W33
|
220
|
340
|
118
|
38.1
|
|
24048CA/C3W33
|
240
|
360
|
118
|
40.8
|
